One 3D EM software

Full 3D EM simulation software

- different applications & custom-made solutions! -

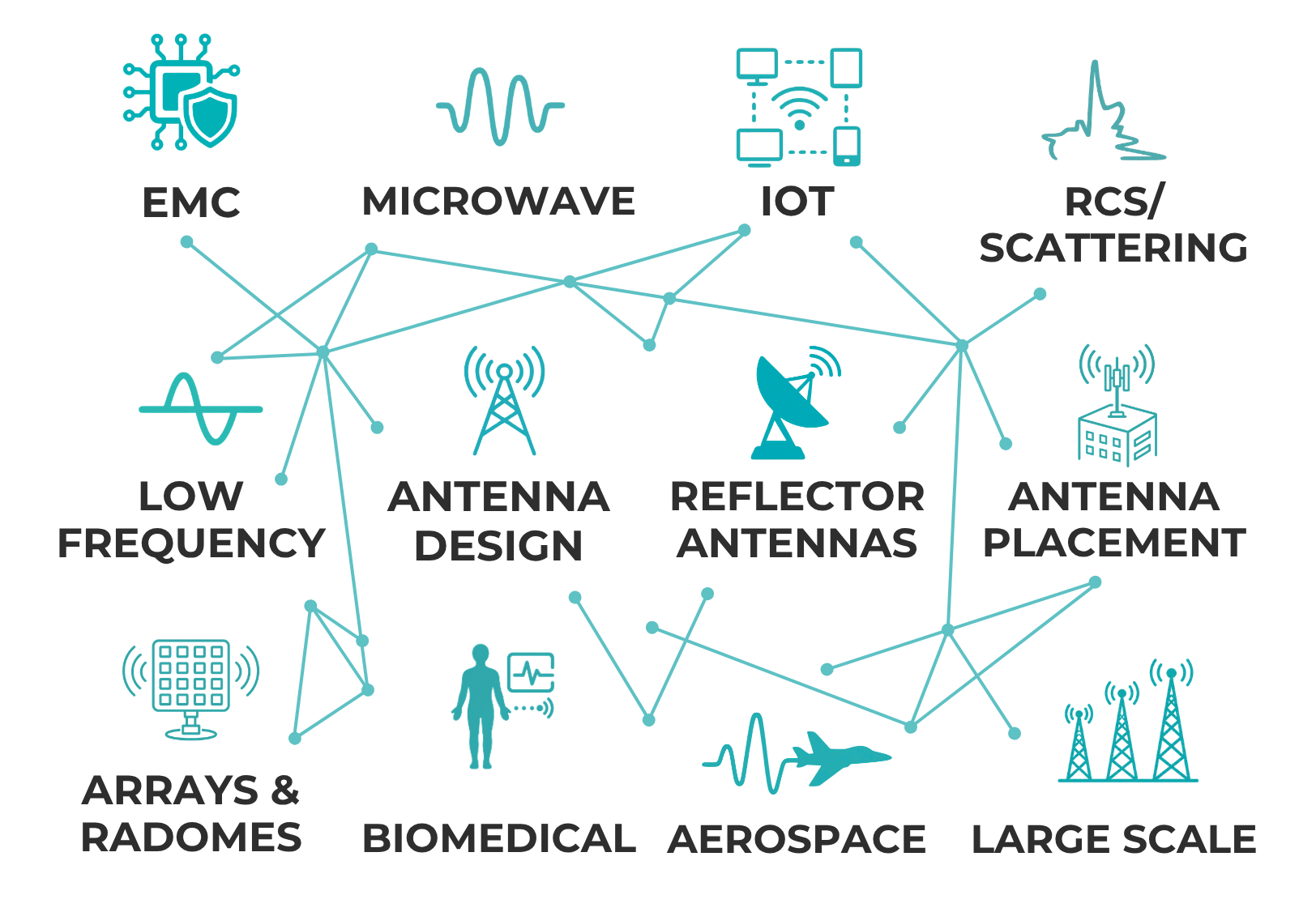

WIPL-D offers cutting-edge electromagnetic simulation software for fast and accurate electromagnetic and circuit modeling including various application areas:

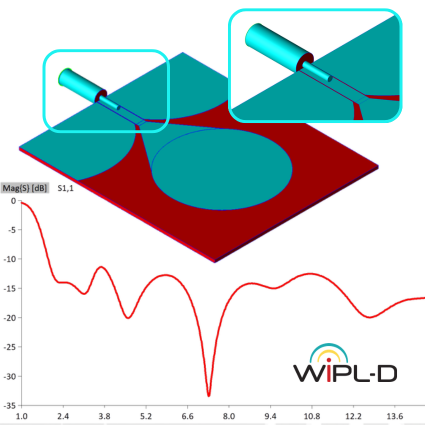

  • Wire Antennas,  Reflector Antennas, Microstrip and other Planar Antennas,  Waveguide Slot Antennas,  Antenna Arrays and Radomes, Antenna Placement,
  • Microwave Filters, Couplers, Connectors, Transitions, Matching Networks,
  • Scattering, Radar Cross Section (RCS),
  • Electromagnetic Compatibility (EMC), Crosstalk, …
sliderImg

WIPL-D Pro CAD 2019

WIPL-D Pro CAD 2019

New version released!

  • Advanced import of DXF (DWG) files for automated multi-layer model build
  • Enhanced model validation.
  • Ribbons instead toolbars and menus.
sliderImg

WIPL-D Pro 16

WIPL-D Pro 16

New version released!

  • Periodic Boundary Condition (PBC) added.
  • ULTRA higher order bases functions implemented for maximum expansion order increased up to 32 and maximum patch size up to 10 λ
sliderImg

Expert consulting!

Expert consulting!

- innovations to move
your business forward -

Our team of skilled and experienced engineers can assist you to meet the projects goals in time and within budget.

sliderImg

Prompt tech support

Full 3D EM simulation software

Prompt tech support

- responsive within a day, dedicated to excellence -

All customers are welcomed to join forces with our technical support team to get the most from WIPL-D software suite.

sliderImg
wipl-d-pro

WIPL-D Pro

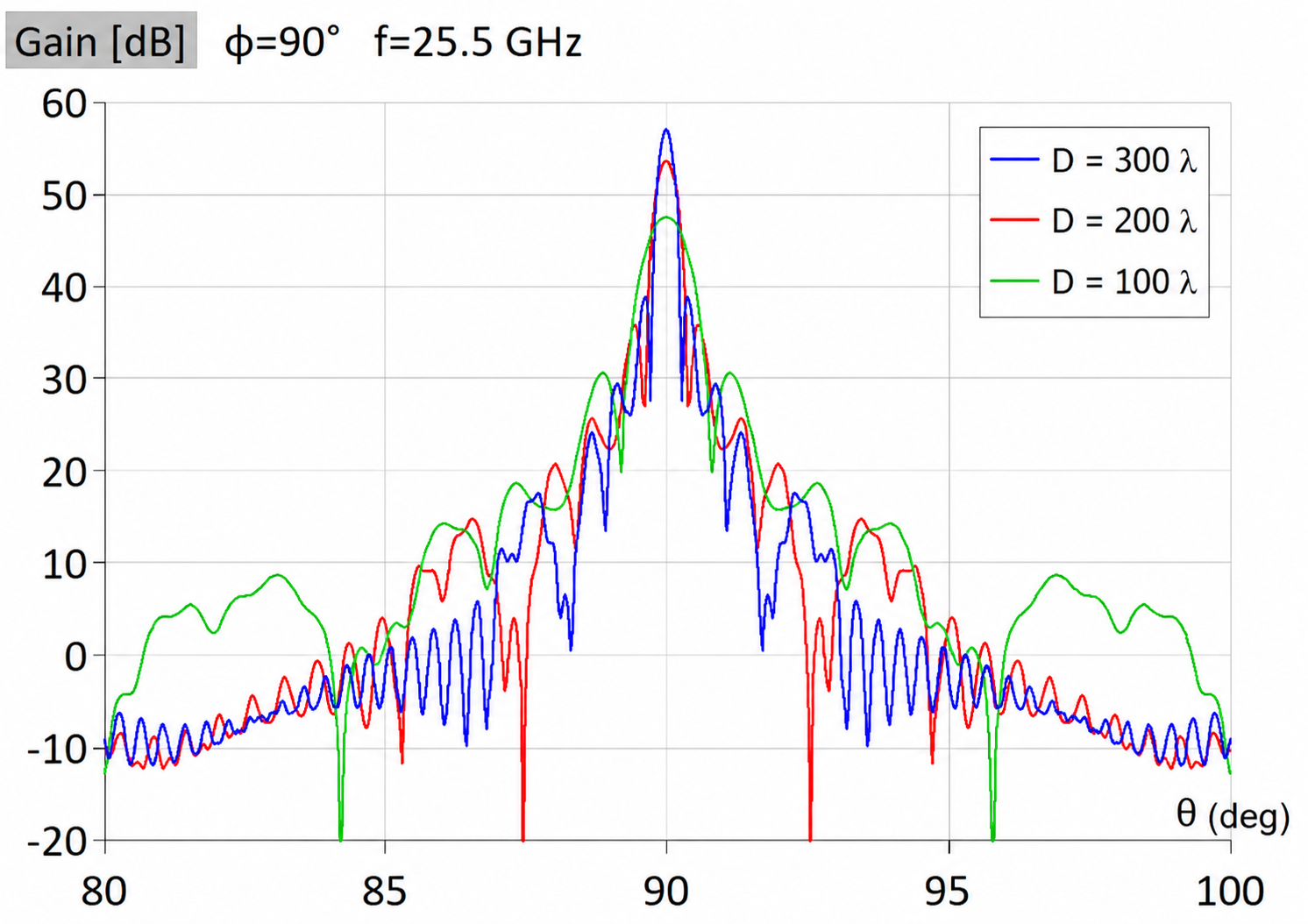

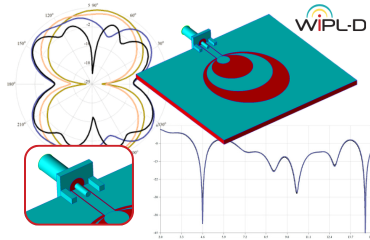

WIPL-D Pro, the flagship product of the WIPL-D software suite, is an extremely powerful full-wave 3D electromagnetic solver providing fast and accurate electromagnetic simulations of arbitrary metallic and dielectric/magnetic structures. The numerical engine is based on the Method of Moments applied to surface integral equations employing higher-order basis functions and a quadrilateral mesh. This particular choice results in high electromagnetic simulation efficiency considerably moving higher the size of the solvable problem for the case of inexpensive CPU/GPU platforms, and extending the size limits where high performance workstations and clusters are available. The accuracy of the electromagnetic solver has been confirmed by numerous benchmarks comparing electromagnetic simulation results with exact analytical solutions or with measurements. Unbeatable EM simulation speed enables rigorous convergence studies of the results, allowing users with diverse levels of EM simulation experience to obtain reliable results.
More Info Get Free Demo
wipl-d-pro

WIPL-D Pro CAD

WIPL-D Pro CAD is a solid modeler and electromagnetic simulator combining ultimate speed and accuracy of WIPL-D Pro simulation with versatile and user friendly 3D modeling interface. Fast and intuitive modelling is based upon built-in library of 2D and 3D primitives, Boolean operations, manipulations, waveguide ports, etc. In addition, import of 3D geometries from several CAD file formats is supported. A range of tools performing automatic healing of irregularities, removal of irrelevant details, etc. is available to prepare the imported structure for the electromagnetic simulations. Complex models like real-life aircraft, ships or cars can be imported and easily made EM simulation ready. Regardless whether the model has been created using built-in primitives, imported structure, or a combination of both, it is in any case meshed using unique, automated, simulation-optimized, all-quad mesher developed by WIPL-D. Finally, powerful WIPL-D Pro kernel with HOBFs and all other benefits is invoked to simulate the meshed model.
More Info Get Free Demo
parallax-img

WIPL-D Electromagnetic Simulation Software - Products Overview

WIPL-D EM simulation software suite consists of core products, WIPL-D Pro and WIPL-D Pro CAD, and several add-ons built around the core products to expand the range of application and capabilities.
GPU
GPU Solver

GPU solver is developed for CUDA enabled Nvidia GPUs. The matrix fill-in, matrix solve and near-field calculations are all accelerated. Arbitrary number of GPUs is supported.

GCS
GPU Cluster Solver

GPU Cluster Solver developed by WIPL-D uses Linux cluster(s) environment for parallelization of full-wave simulations. It combines GPU and MPI parallelization using advanced algorithms. The solver can be used for fast solving of multi-frequency problems of medium or relatively large size, and solving of electrically extremely large single-frequency problems.

DDS
Domain Decomposition Solver

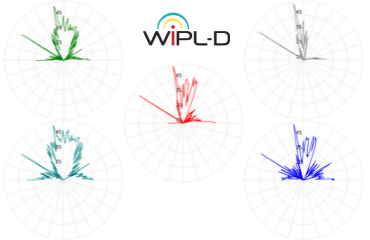

The solver analyses electrically very large structures by subdividing the boundary problem into smaller sub-domain problems, solving the subdomain problems and combining the solutions. Full wave solutions of antenna placement, including the calculation of the coupling between several antennas, monostatic and bistatic RCS, radomes etc. can be obtained with high numerical efficiency.

2D
WIPL-D 2D Solver

3D EM analysis of electrically long structures with constant cross section can be replaced with 2D analysis of the cross section itself. The analysis can be performed by WIPL-D 2D Solver with a particular cross section exported from WIPL-D Pro or WIPL-D CAD, or modelled from scratch in WIPL-D 2D solver.

MW
WIPL-D Microwave Pro

A powerful circuit simulator. Confirms its full potential in co-simulations of circuits and 3D-EM structures as WIPL-D Pro is seamlessly invoked for each EM analysis. Filter Designer and Array Designer modules can be optionally linked with MW Pro for automated, wizard-like microwave filter and antenna array synthesis.

OPT
Optimizer

Powerful multi-algorithm optimization tool which calculates both a single and multiple solutions for complex, multi-criteria optimization. Various built-in optimization algorithms are available.

TDS

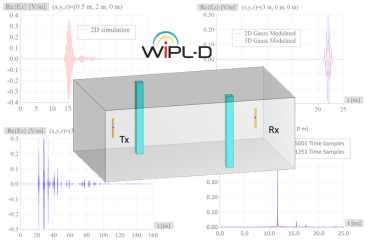

Time Domain Solver

The solver calculates time-domain response to predefined or user-defined excitation pulses by using frequency-domain analysis and Fourier transformation.

AW
AW Modeler

AW Modeler can be used for import of drawings in 2D DXF format and conversion to a simulation ready WIPL-D 3D EM projects.

CMA
CMA Solver

CMA Solver performs Characteristic Mode Analysis of metallic structures. Advanced algorithms developed for mode calculation and tracking result in highly accurate, wideband CM characterization of the structures.

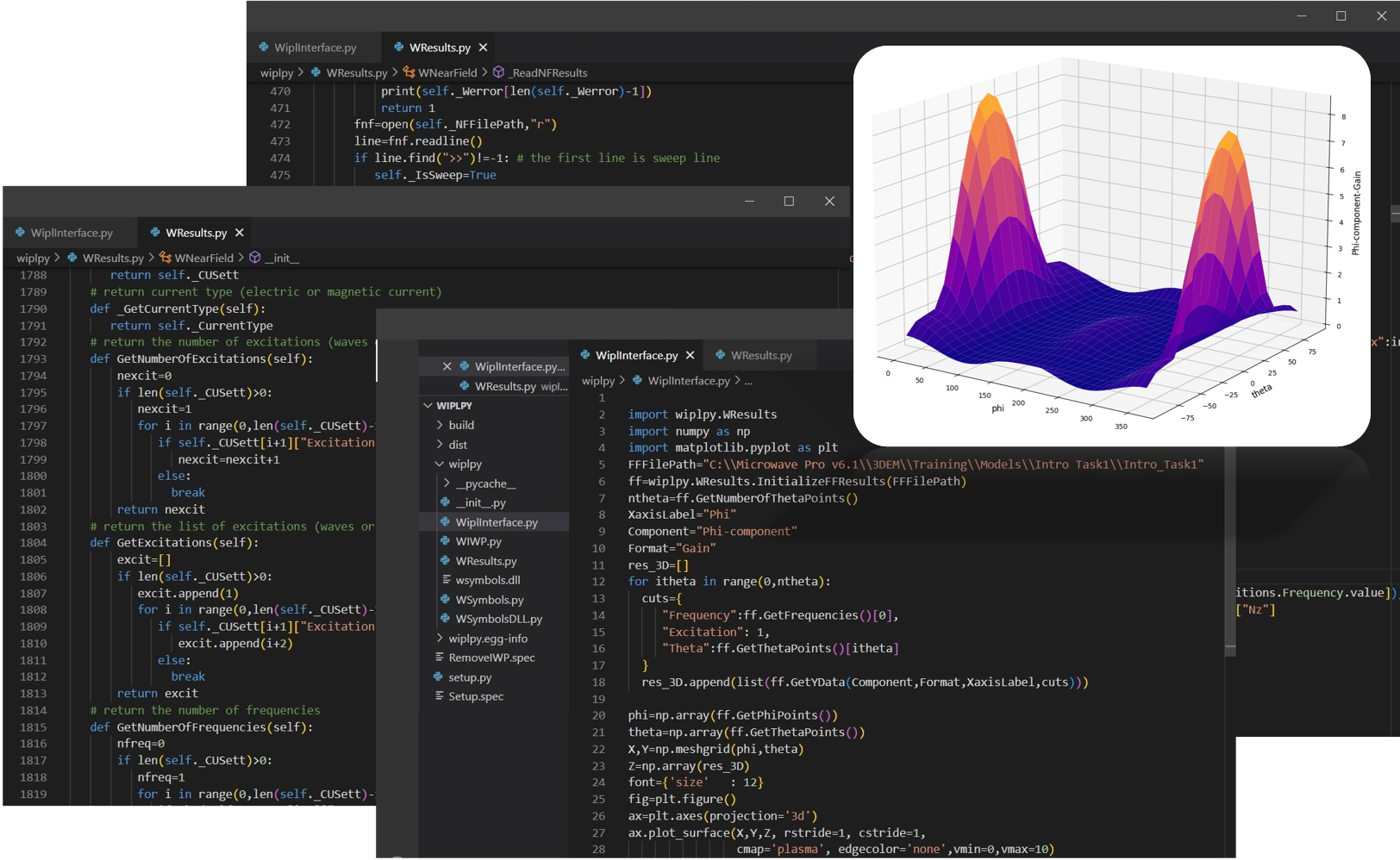

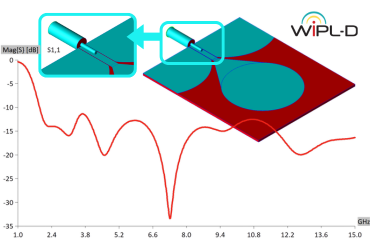

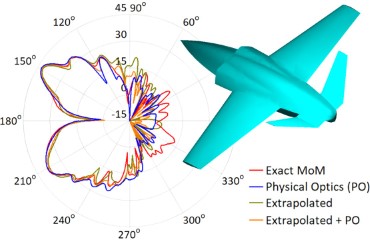

News & Events

Stay tuned for the latest activities of WIPL-D team. For faster navigation, all news are divided into 3 categories: software (new releases, patches, etc.), events (conferences, software training, customer stories, etc.) and resources (application notes, papers, etc.).
Events 12-Sep-2019
Free WIPL-D training at EuMW2019 in Paris 1st-3rd October, 2019

WIPL-D will traditionally take part at EuMW2019 in Paris, booth #301c in joint exhibition NI AWR partner’s area at Paris Expo Porte De Versailles. During 3 days, in the morning and afternoon 2-hour slots, WIPL-D will deliver free training for all interested parties, which consists of 3…

More Info
Events 27-Aug-2019
ICEAA 2019, Granada, Spain

The International Conference on Electromagnetics in Advanced Applications (ICEAA 2019) will take place in Granada, Spain, at the Granada Conference and Exhibition Centre from 9-13 September, 2019, coupled to the IEEE-APS Topical Conference on Antennas and Propagation in Wireless Communications…

More Info
Resources 23-Aug-2019
Frequency Dependent Parameters in EM Simulation – Changing Dielectric Constant and Loss Tangent with Operating Frequency

The document demonstrates how to introduce frequency dependent dielectric parameters in WIPL-D Pro, a full-wave 3D EM simulator. Most materials used in fabrication of microwave circuits and antennas have frequency dependent properties which should be taken into account in EM…

More Info
